Description
The GSDT-PS-II power supply module is designed to provide stable powering for all modules in the chassis. Two GSDT-PS modules can be used in one Excelsior platform redundancy with built-in power sharing circuitry. The auto-recovery short circuit protection function of the power supply improves the reliability of the platform. On the front panel, the LEDs indicate module status and DC voltage output status. GSDTPS also provides 24 DC test point voltage testing for output.

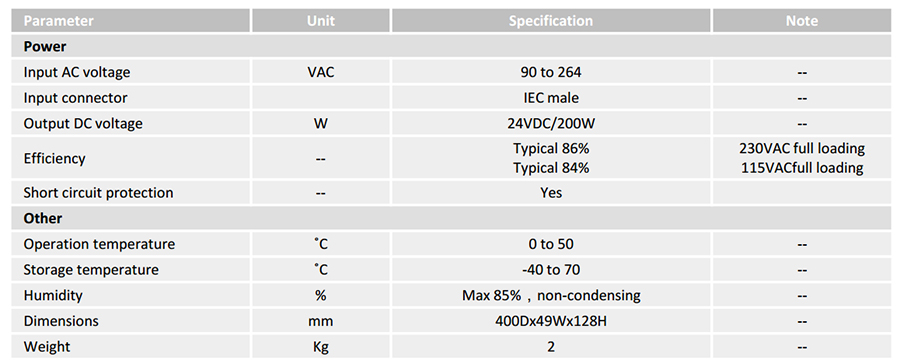

Specifications
Features
■ 90 to 264 VAC wide range
■ 24 VDC/200W output
■ Hot-swap capability
■ Built in power sharing circuit
■ Auto-recovery short circuit protection
■ Integrated fans for localized cooling
■ LEDs for module status indication
